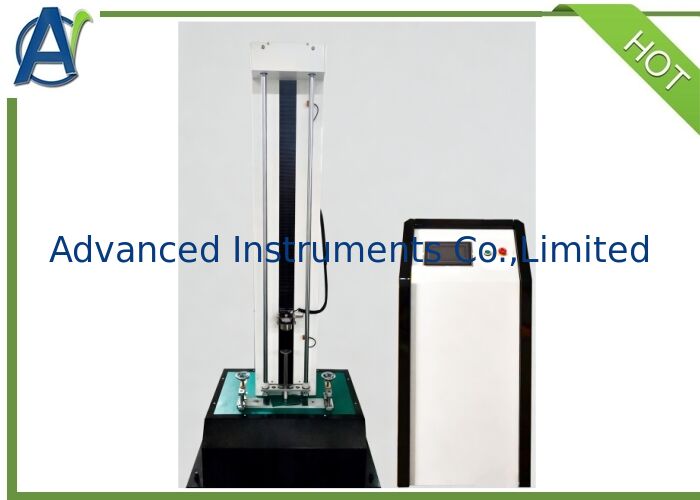

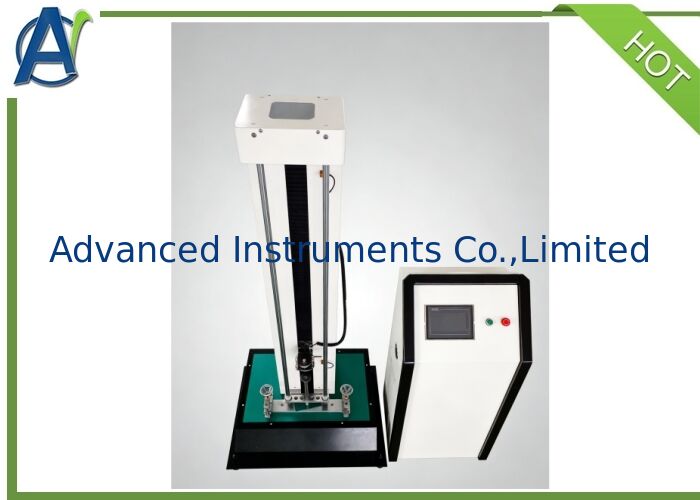

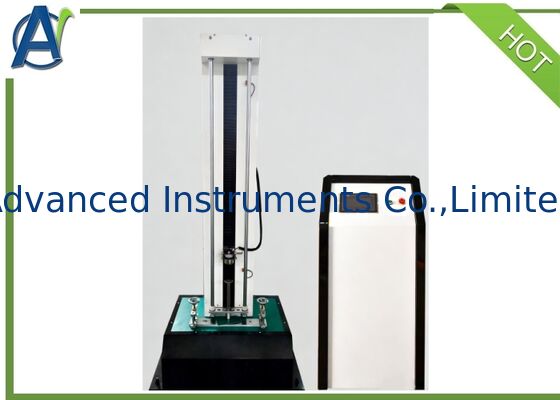

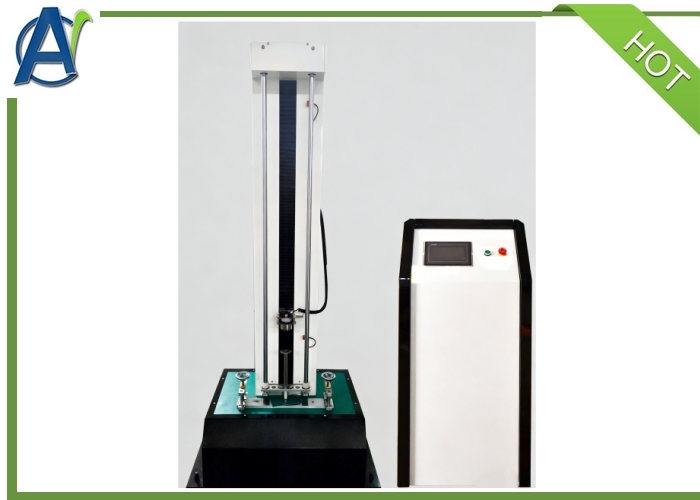

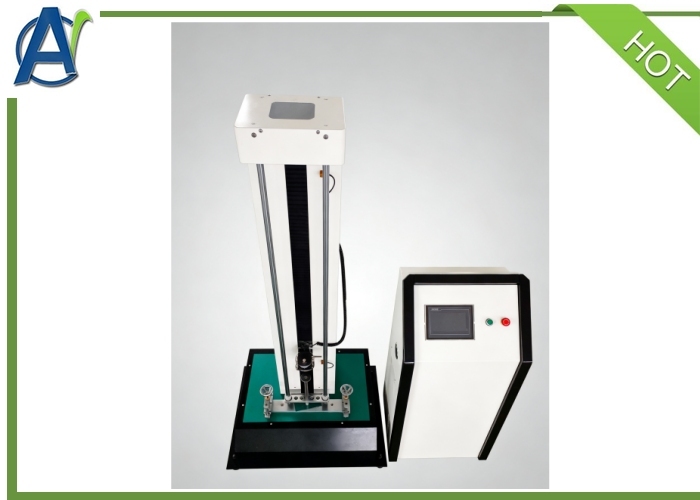

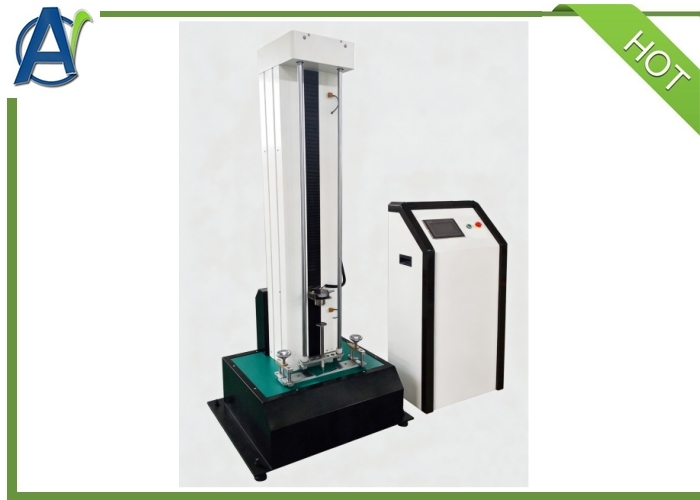

IEC 60794 High Precision Optical Cable Impact Testing Machine

Informação Básica

Lugar de origem:	China
Marca:	Advanced Instruments
Certificação:	IEC 60794-1-21:2020
Número do modelo:	AIC-21091

Quantidade de ordem mínima:	1 CONJUNTO
Preço:	$3000~$10000
Detalhes da embalagem:	Caixa de madeira compensada
Tempo de entrega:	60 DIAS
Termos de pagamento:	L/C,T/T,D/P
Habilidade da fonte:	20 conjuntos/mês

Melhor preço contacto

Após o serviço:	Resposta em 12 horas e 12 meses	Garantia:	1 ano completo
Pacote de Transporte:	Caixa de madeira compensada	padrão de teste:	CEI 60794-1-21:2020
Fonte de energia:	CA220V,50/60Hz,5A	Altura do impacto:	100-1000mm (ajustável)
Taxa de impacto:	10~20 vezes/min, configurável arbitrariamente	Número de impacto:	1~9999, configurável arbitrariamente
Peso do suporte da cabeça de impacto:	1,36 kg	Raio de canto redondo:	R12,5mm
Peso:	2,5kg×4; 0,5kg×5; 140g×1;
Destacar:	IEC 60794 , Optical Cable Impact Tester , Fiber Optic Cable Impact Testing Machine

General Introduction

1.1 Equipment overview

Optical cable impact tester is used to detect optical fiber cables to withstand impact capability. By applying the impact force, the requirements for qualified optical cables is that fibers are not broken, and fiber attenuation changes do not exceed the specified value of optical cable product detailed specifications, the cable sheath jackets do not crack, which meets the test requirements to optical cable of method E4.

Completely new design, optimized and upgraded based on the previous generation, impact height can be freely set, meet impact test requirements of all optical fiber cables up to 1000mm.

1.2 Related standards

IEC 60794-1-21:2020

IEC 60794 High Precision Optical Cable Impact Testing Machine 0

Features

Adopt Man-machine interface and PLC control
Xinje color screen displays test parameters and test data
Digital display, intuitive, easy to read
Automatically record the number of impacts and automatically stop the machine at the end of the test
Xinje servo drive system, smooth transmission, reliable operation
The impact speed and the impact height can be set
Replaceable weight counterweight

Technical parameters

Impact height: 100-1000mm (settable)
Impact rate: 10~20 times / min, settable arbitrarily
Number of impact: 1~9999, settable arbitrarily
Impact head bracket weight: 1.36kg
Round corner radius of optical cable impact head: R12.5mm
Weight: 2.5kg×4,0.5kg×5,140g×1
Installed on a stable foundation with a levelness of ≤ 0.5/1000 and a space of no less than 1 meter left around

Technical specifications

Overall Dimensions: 730mm×510mm×1760mm
Control cabinet: 600mm×400mm×1240mm
Power supply: AC 220V, 50/60Hz, Power:1KW

What's the delivery time?
About 60days.
What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
