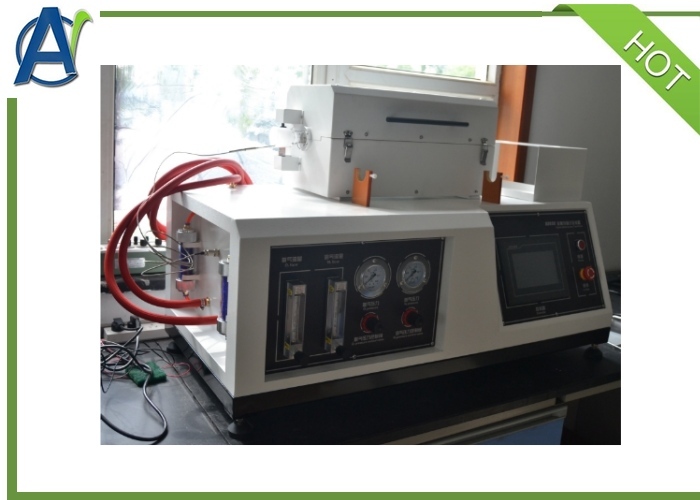

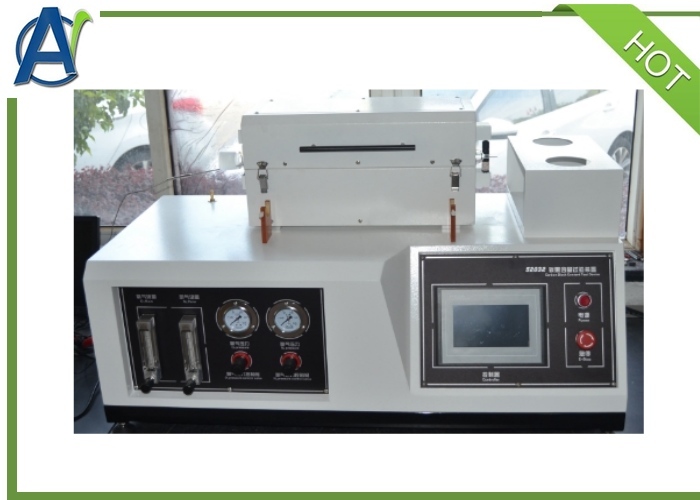

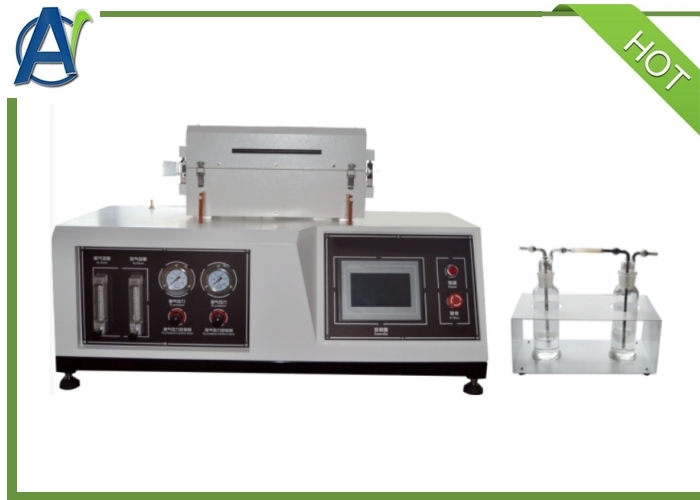

IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing

IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing
IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing
Informação Básica
Lugar de origem: China
Marca: Advanced Instruments
Certificação: IEC 60811-4-1:2004 ; ISO 6964
Número do modelo: AIC-52032
Quantidade de ordem mínima: 1 CONJUNTO
Preço: $5000~$10000
Detalhes da embalagem: Caixa de madeira compensada
Tempo de entrega: 30 dias
Termos de pagamento: L/C,T/T,D/P
Habilidade da fonte: 20 conjuntos/mês
Melhor preço contacto
Após o serviço: Resposta em 12 horas e 12 meses Garantia: 1 ano completo
Pacote de Transporte: Caixa de madeira compensada padrão de teste: CEI 60811-4-1:2004; ISO 6964
gás: nitrogênio (índice de oxigênio <0.5%), oxigênio aplicativo: Teste de cabos e fios
Cor: Cinza Operação: Automático
Tamanho da cobertura metálica: 300mmx600mmx1175mm Fonte de energia: CA220V,50/60Hz,16A
Queimador de explosão: potência nominal 1kw Dispositivo de gravação: ignição automática de alta tensão
Fonte de ar: Propano e ar comprimido Modo de controle: Controle da tela de toque
Volume da câmara de combustão: ≥ 1m³ Especificação: 600mm×450mm×750mm
tubo de quartzo: diâmetro interno 30mm, comprimento total 450mm; Lavagem de garrafas: 500ml, 2 unidades/conjunto
Barco em chamas: Tipo 77, 100 unidades/conjunto;
Destacar:

IEC 60811-4-1:2004

,

ISO 6964

,

Carbon black Test Device

General Introduction
1.1 Equipment overview

Carbon black content test device is designed and produced in line with GB/T2951.41—2008 <Common test methods for insulating and sheathing materials of electric and optical cables--Part 41: Methods specific to polyethylene and polypropylene compounds - Carbon black and/or mineral filler content measurement in polyethylene by direct combustion>, used for determination of carbon black content of polyethylene, polypropylene, polybutylene plastics.

1.2 Related standards
  • ISO 6964;
  • IEC 60811-4-1:2004
  • ASTM D1603

IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing 0

Technical parameters
  1. Quartz tube: inner diameter 30mm, total length 600mm;
  2. Heating furnace: room temperature~600℃, 500mm length;
  3. Temperature sensor: K type, room temperature~1300℃;
  4. Bottle washing: 500ml, 2 pcs/set;
  5. Burning boat: Type 77, 100 pcs/set;
  6. Air source: nitrogen (oxygen content <0.5%), oxygen (customer provided);
  7. Flow meter: 0.3~3L/min.
Technical specifications
  1. Overall Dimensions: 600mm*450mm*770mm
  2. Power supply: AC 220V, 50/60Hz, 16A
IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing 1
FAQ
  1. What's the delivery time?
    About 30days.
  2. What's your payment terms?
    30% paid by T/T in advance,70% paid by by T/T before shipping.
  3. What's your guarantee terms?
    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
  4. Can you supply training?
    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
