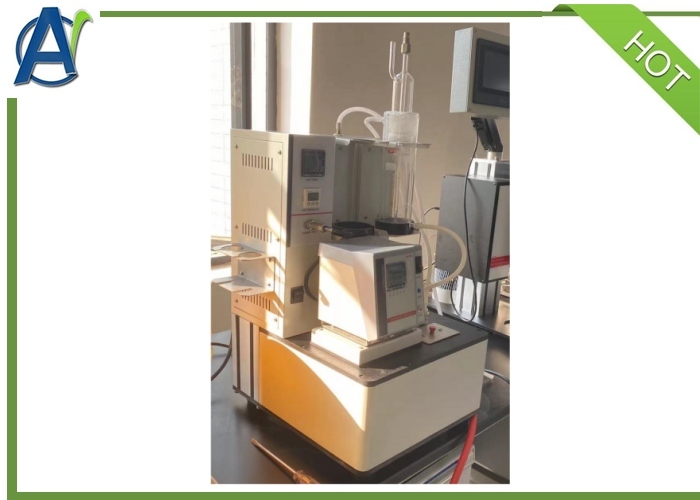

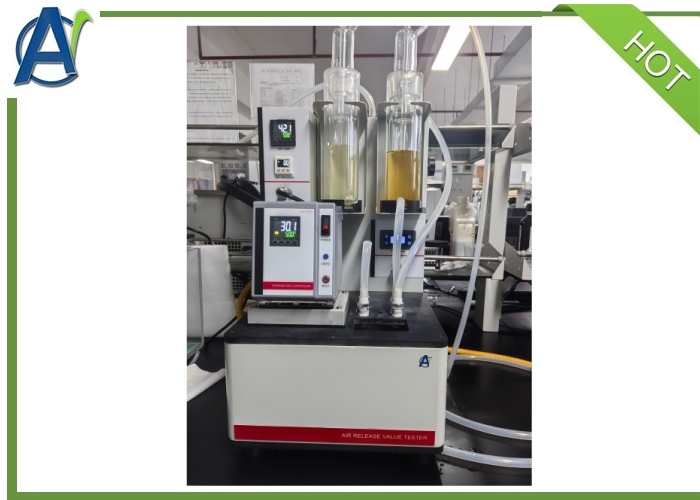

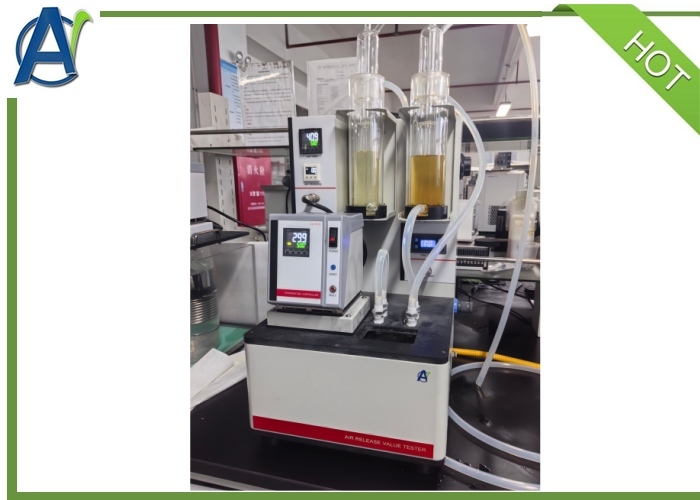

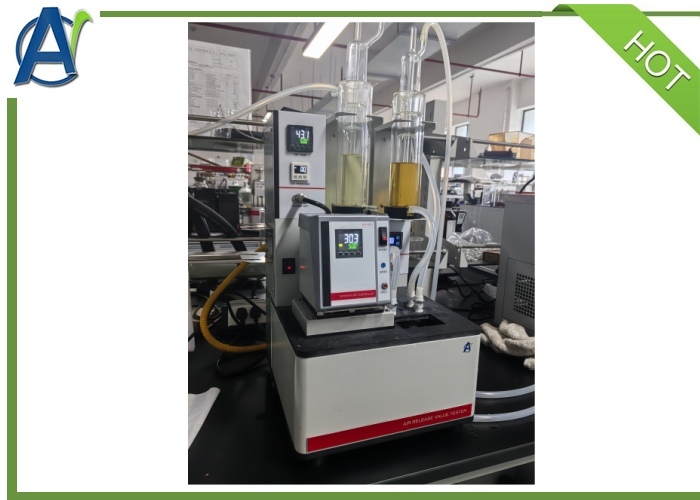

ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester

Informação Básica

Lugar de origem:	China
Marca:	AI
Certificação:	ISO9001
Número do modelo:	ARV-II

Quantidade de ordem mínima:	1 conjunto
Preço:	USD$3,000~5,000
Detalhes da embalagem:	caixa de madeira compensada
Tempo de entrega:	30 dias
Termos de pagamento:	T/T, União Ocidental, L/C
Habilidade da fonte:	20 conjuntos por mês

Melhor preço contacto

Garantia:	1 ano completo	Aplicativo:	Ensaios de gordura
Linguagem:	inglês	Serviço OEM:	Disponível
Faixa de controle de temperatura:	ambiente~80±1℃	Função:	Testar a capacidade dos óleos de separar o ar arrastado
Padrão de teste:	ASTM D3427,SH/T0308	Fonte de energia:	AC220±10% 50Hz±5%
Exposição da pressão:	Digital	Pressão de trabalho:	19,6kPa
Controle de pressão:	válvula reguladora de pressão precisa	Operação:	Manual
Mostrar:	liderado	Portátil:	Não portátil
Tipo:	Medidor de valor de liberação de ar	Modo de temporização:	Temporizador Digital
Modo de aquecimento:	Barra elétrica
Destacar:	ASTM D3427 lubricant air release tester , SH/T0308 automatic oil tester , lubricant air release value equipment

I. ASTM D3427 Lubricating Grease Air Release Properties Tester

The Air Release Properties Apparatus is suitable to test ability of oils to separate entrained air,such as turbine oil, hydraulic oil etc.

Heat the oil sample to temperature 25,50 or 75ºC,blow compressed air through the test oil,make make it stirred strongly.Air becomes small bubbles in the air,that is entrained air.After the air is stopped,the time required for the air entrained in the oil to reduce in volume to 0.2% is recorded as the air release time.

II. Main Features

1. Micro-computer processing and PID controlling,digitally display set and real temperature,accuracy 1ºC,Pt100 RTD temperature probe.

2. Working temperature range:ambient~80ºC,accuracy can adjust to ±0.1ºC

3. High precise air regulating valve,control pressure to 19.6 Kpa accurately.

4. Stainless steel constant water bath is corrosion resistant.

5. The Air Release Properties Tester uses LED display working pressure.

6. Each tap can be connected easily.

7. Timer can display time,manual timing is not needed.

8. The case is treated with Electrostatic spraying and high temperature baking,beautiful and elegant.

9. Independent air filtering and Voltage stabilizer,can reduce water and oil in air.

III. Specifications:

1	Applicable standard	SH/T0308, ASTM D3427, DIN51585, NFT60151 ,IP135
2	Power supply	AC220±10% 50Hz±5%
3	Heating mode	Electric bar
4	Temperature controlling range	ambient~80±1ºC,if using silicon oil,it can reach higher temperature.
5	Working pressure	19.6Kpa
6	Pressure controlling	Precise pressure regulating valve
7	Timing mode	Digital timer
8	Pressure display	Digital

FAQ

What's the delivery time?
About 30days.
What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
