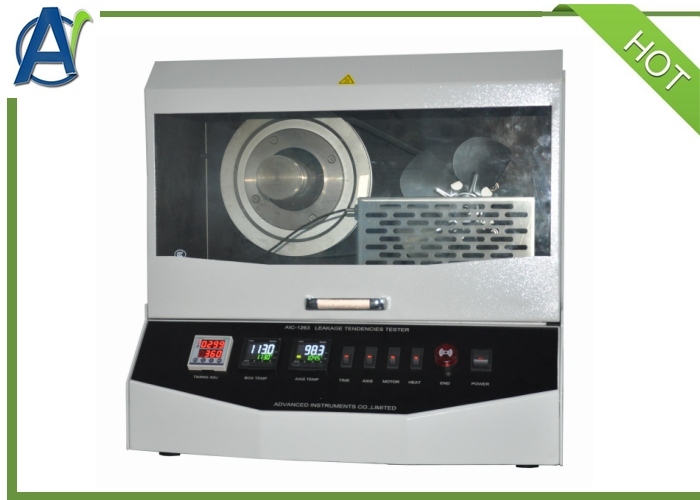

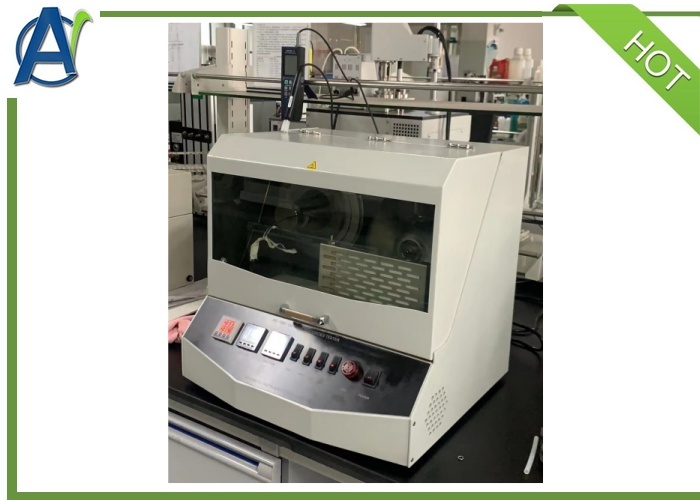

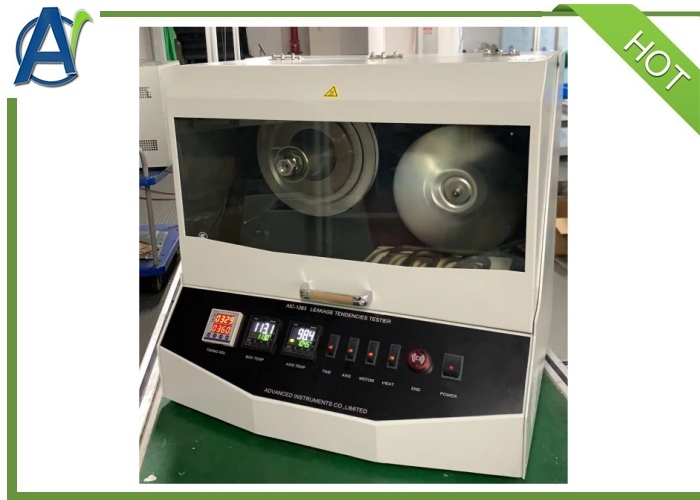

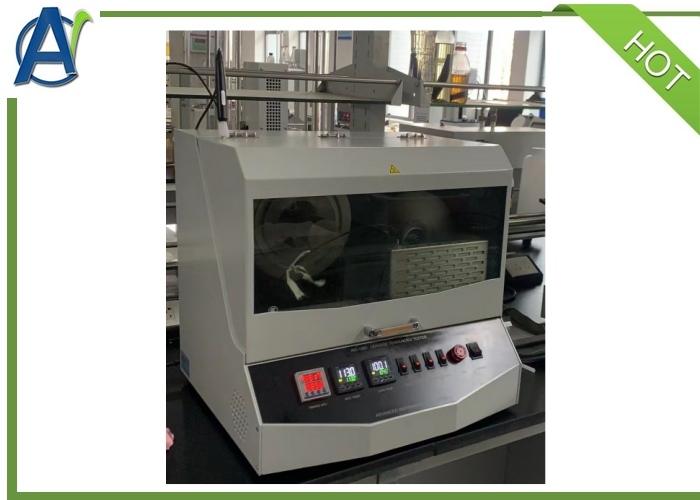

ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing

ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing
ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing
Informação Básica
Lugar de origem: China
Marca: AI
Certificação: ISO9001
Número do modelo: AIC-1263
Quantidade de ordem mínima: 1 conjunto
Preço: USD$3,000~4,000
Detalhes da embalagem: caixa de madeira compensada
Tempo de entrega: 30 dias
Termos de pagamento: T/T, União Ocidental, L/C
Habilidade da fonte: 20 conjuntos por mês
Melhor preço contacto
Linguagem: inglês Garantia: 1 ano completo
Padrão de teste: ASTM D1263,SH/T0326 Trandmark: Instrumentos Avançados
Serviço OEM: Disponível Método de aquecimento: Banho de metal
Método cronometrando: Temporizador Digital Intervalo de tempo: 0.01s~99h99m
Faixa de controle de temperatura: ambiente ~ 150 ℃ ± 0,1 ℃ Velocidade do motor: 660 r/min ± 30 r/min
Temp.controller: OMRON Peso: 43kg
Fonte de energia: 220V, 50Hz Potência total: 1000 W
Posição de trabalho: 2 unidades Função: Teste de vazamento de graxa para rolamentos de rodas de automóveis
Aplicativo: Ensaios de gordura
Destacar:

ASTM D1263 grease leakage tester

,

automotive wheel bearing tester

,

grease leakage tendency test equipment

I. ASTM D1263 Grease Leakage Tendency Tester

Load the sample into the modified front wheel hub and shaft assembly, and let the hub and shaft run for a total of 360±5 min under the specified conditions. Measure the leakage of grease or oil, and observe the condition of the bearing surface at the end of the sample.
This Leakage Tendencies Test Apparatus is suitable for the determination of the leakage of automobile wheel bearing grease, and can be used to distinguish products with obviously different leakage characteristics.

II. Main Features

1. The Leakage Tendencies Test Apparatus adopts an integrated design with a timeless appearance and easy operation;
2. The unique box-type heating system of inserting the heat pipe rod into the casting body makes the heating speed fast and the temperature control precision is high;
3. The imported motor rotates, with low noise, stable speed, good mechanical performance and little wear;
4. The rotating hub and shaft assembly has a compact structure and small end clearance. The bearings are all imported components, which guarantees reliability and wear resistance;
5. Microcomputer temperature controller, digital display, accuracy ±0.5ºC PT100 sensor;
6. The Leakage Tendencies Test Apparatus adopts Digital display timer to record test time;
7. There is a thermometer hole on the shaft assembly;
8. Standard motor 660r/min±30r/min;
9. The total heating power of the two groups is 660W;
10. There is insulation cotton around the box body for heat insulation.
ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing 0

III. Specifications:

Applicable standards ASTM D1263,SH/T0326
Heating method Metal bath
Timing mode and range Digital timer,0.01s~99h99m
Temperature controlling range ambient~150ºC±0.1ºC
Temperature control mode Imported PID
Motor speed 660r/min±30r/min
Weight 43KG
Power supply 1500w
Working power supply AC220V/50HZ
Total power 1000W

FAQ

  1. What's the delivery time?

    About 30days.

  2. What's your payment terms?

    30% paid by T/T in advance,70% paid by by T/T before shipping.

  3. What's your guarantee terms?

    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

  4. Can you supply training?

    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
