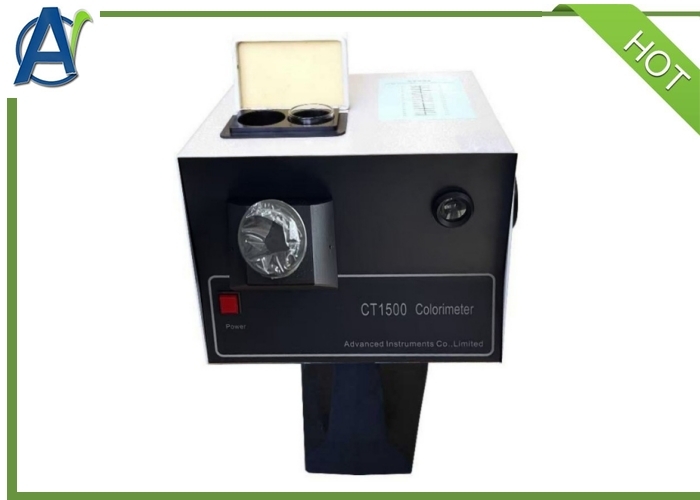

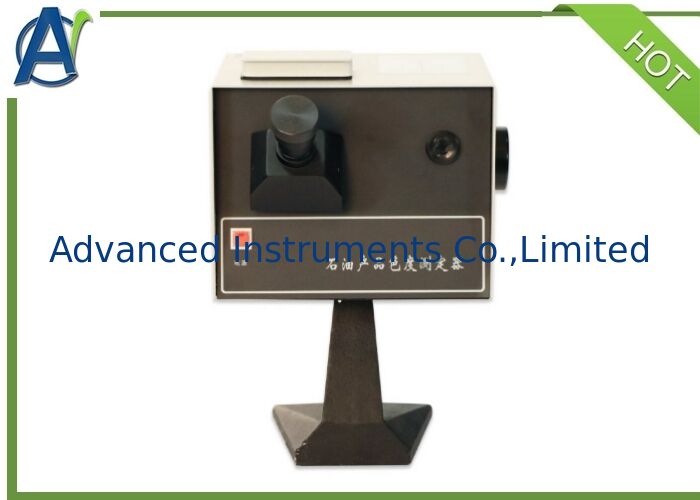

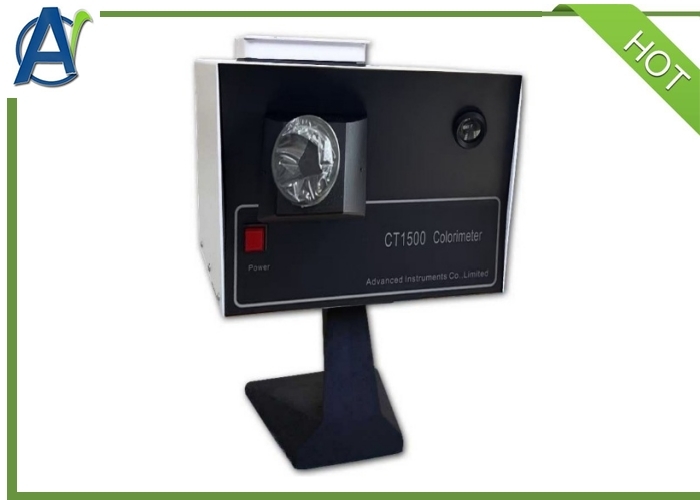

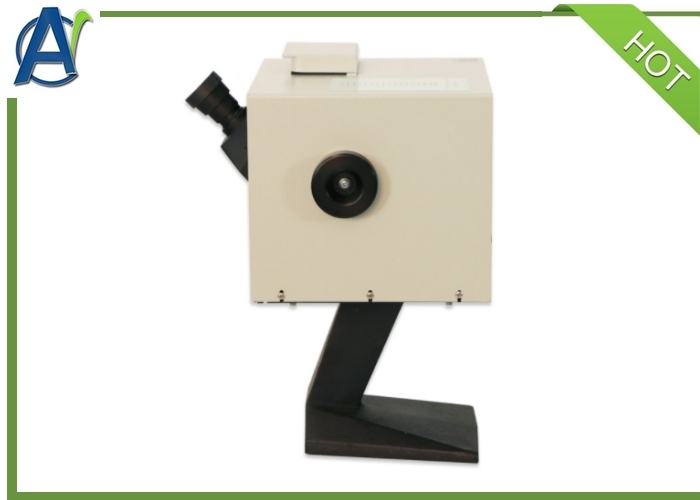

ASTM D1500 Digital Portable Petroleum Products Colorimeter,Color Tester

ASTM D1500 Digital Portable Petroleum Products Colorimeter,Color Tester
ASTM D1500 Digital Portable Petroleum Products Colorimeter,Color Tester ASTM D1500 Digital Portable Petroleum Products Colorimeter,Color Tester ASTM D1500 Digital Portable Petroleum Products Colorimeter,Color Tester ASTM D1500 Digital Portable Petroleum Products Colorimeter,Color Tester ASTM D1500 Digital Portable Petroleum Products Colorimeter,Color Tester ASTM D1500 Digital Portable Petroleum Products Colorimeter,Color Tester ASTM D1500 Digital Portable Petroleum Products Colorimeter,Color Tester ASTM D1500 Digital Portable Petroleum Products Colorimeter,Color Tester ASTM D1500 Digital Portable Petroleum Products Colorimeter,Color Tester ASTM D1500 Digital Portable Petroleum Products Colorimeter,Color Tester ASTM D1500 Digital Portable Petroleum Products Colorimeter,Color Tester ASTM D1500 Digital Portable Petroleum Products Colorimeter,Color Tester
Informação Básica
Lugar de origem: China
Marca: Advanced Instruments
Certificação: ASTM D1500
Número do modelo: CT1500
Quantidade de ordem mínima: 1 CONJUNTO
Preço: US$1000-2000/set
Detalhes da embalagem: caixa de madeira compensada
Tempo de entrega: 15 dias
Termos de pagamento: T/T, L/C, D/P
Habilidade da fonte: 50 conjuntos por mês
Melhor preço contacto
Padrão de teste: ASTM D1500 Garantia: 1 ano completo
Pacote de Transporte: caixa de madeira compensada Trandmark: Instrumentos Avançados
Fonte de alimentação operacional: AC220V±10V, 50Hz Aplicação: Teste de cor de produtos petrolíferos
Modo de controle: Manual O consumo de potência: 110 W
Peso Líquido: 15KG
Destacar:

ASTM D1500

,

Digital Portable Color Tester

,

Portable Oils Colorimeter

General Introduction



This Digital Portable Petroleum Products Colorimeter is suitable to determine color of various lubricating oils and other petroleum products as per SH/T 0168-92 "Test Method for Color of Petroleum Products". The test methods are as follows: fill test sample into color comparing tube and compare sample color with standard color to ascertain its color number. Please see the attached color number comparing sheet to find out the similarity between color number of the instrument and color number in standard GB/T6540.

And This Petroleum Products Color Tester also can be suitable to the Test Method ASTM D1500.



Product Advantages



The Petroleum Products Colorimeter is composed of standard color dial, observation lens, light source and color comparing tube.


The light source is a 220 V, 100 W, with temperature of 2750±50 K grinding milk white light bulb. After filtering color by milk white glass and sunshine filtering glass, the spectrum characteristics of light gained from sunshine is similar to it. The standard light will change into two parallel lights, which is similar in size, trough plane reflection mirror and prism. The parallel lights will irradiate on sample in the color comparing tube on the color glass of standard color dial evenly and respectively.

There are 26 pieces of Φ14 light holes. And standard color glasses having 1~25 color number are installed in the 25 of these holes in sequence. The 26 hole is blank. The color dial is rotated by a hand wheel installed at right side of instrument to choose the correct color during color comparing test. The standard color comparing glass on the color dial should be calibrated by standard color comparing liquids.

The color comparing tube is Φ32 mm, 120~130 mm high non-colorful flat bottom glass tube. The color comparing tube is placed into instrument trough a lid on the top of the instrument.

The observation lens is composed of concave mirror and separated bar. You can see two semicircle colors through observation lens. The right semicircle is standard color. The light and focus of optical observation lens can be adjusted, so it is easy to be used.

ASTM D1500 Digital Portable Petroleum Products Colorimeter,Color Tester 0


The Technical Specifications and Parameters



The power consumption of the whole machine

110w

Power supplyAC(220±10%)V, 50Hz
Dimensions

350mm×250mm×400mm

Net Weight

15kg


ASTM D1500 Digital Portable Petroleum Products Colorimeter,Color Tester 1


FAQ
1.What's the delivery time?
About 15days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
