ASTM D5800 Automatic Evaporation Loss Appratus of Lubricating Oils by the Noack Method B Analyzer Tester

Informação Básica

Lugar de origem:	China
Marca:	Advanced Instruments
Certificação:	ASTM D5800
Número do modelo:	AIC-0059B

Quantidade de ordem mínima:	1 CONJUNTO
Preço:	US$10000-15000/set
Detalhes da embalagem:	caixa de madeira compensada
Tempo de entrega:	20 dias
Termos de pagamento:	T/T, L/C, D/P
Habilidade da fonte:	50 conjuntos por mês

Melhor preço contacto

Padrão de teste:	ASTM D5800	Método de teste:	Método Noack B
Faixa de temperatura:	Temperatura ambiente ~ ℃ 300	Precisão da resolução da configuração de temperatura:	± 0,1 ℃
Precisão de temperatura:	±0,5℃	Unidade de aquecimento:	unidade de aquecimento leve ambiental
Controle de vácuo:	filtros de ar para bomba de vácuo e manômetro	Potência de aquecimento:	2KW
fonte de energia:	AC220V±10% 50Hz
Destacar:	ASTM D5800 , Automatic Evaporation Loss Appratus , Automatic Evaporation Loss Analyzer the Noack Method B

eneral Introduction

The Automatic Lubricating Oil Evaporation Loss Tester (Noack B method) is designed and manufactured according to Industry standard NB/SH/T 0059-2010 and ASTM D5800 Standard test method for evaporation loss of lubricating oils by the Noack B method.It's suitable to determine lubricating oil.

Product Advantages

1. Intelligent Interactive Interface
1).Equipped with a 7-inch full-color high-performance HD TFT touchscreen
2).Highly sensitive touch response and smooth operation
3).User-friendly interface layout for clear operation and data display, enhancing user experience

2.Compact Design and Efficient Temperature Control
1).Desktop integrated structure, saving space
2).Low-inertia heating system with H62 copper heating base and annular heating belt
3).Ensures high temperature control accuracy and stability

3.High-quality Imported Components
1).Features high-end components such as French imported inclined tube manometer and American Filter air filter
2).Ensures stable and reliable equipment performance

4.Efficient Vacuum System
1).Special customized miniature vacuum pump with advanced performance
2).Stable negative pressure, meeting high-precision experimental requirements

5.High-precision Temperature and Pressure Control
1).High sample temperature control accuracy
2).Automatically adjusts pressure difference during testing
3).Maintains pressure within 20mm ± 0.2mm Hg range
4).Ensures accuracy of experimental results

6.Flexible Data Management

1).Software focuses on process control
2).Optional independent data processor for data storage and printing
3).Supports connection with balance for flexible laboratory configuration

The Technical Specifications and Parameters

Power supply	AC(220±10%)V, 50Hz
Temperature range	Room temperature ~300°C
Temperature setting resolution accuracy	±0.1℃
Temperature accuracy	±0.5℃
Heating unit	Environmental light heating unit
Vacuum control	Vacuum pump and pressure gauge air filters
Pressure range	0~25mm H₂O
Pressure resolution accuracy	±0.05mm H₂O
Pressure stabilization accuracy	±0.2mm H₂O
Heating power	2kw

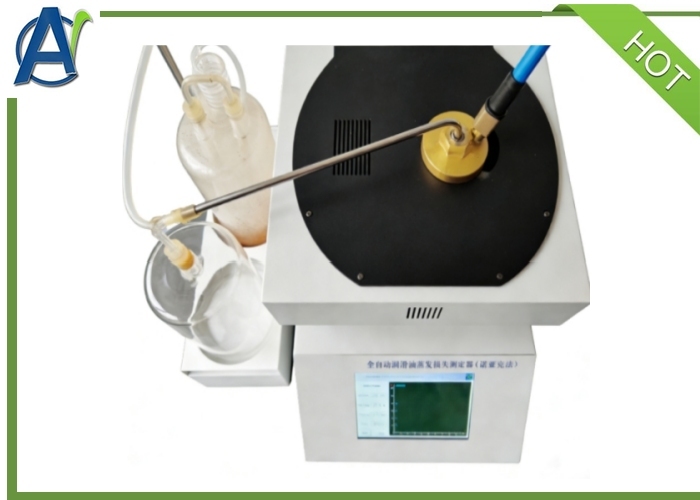

ASTM D5800 Automatic Evaporation Loss Appratus of Lubricating Oils by the Noack Method B Analyzer Tester 1

1.What's the delivery time?
About 20days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
