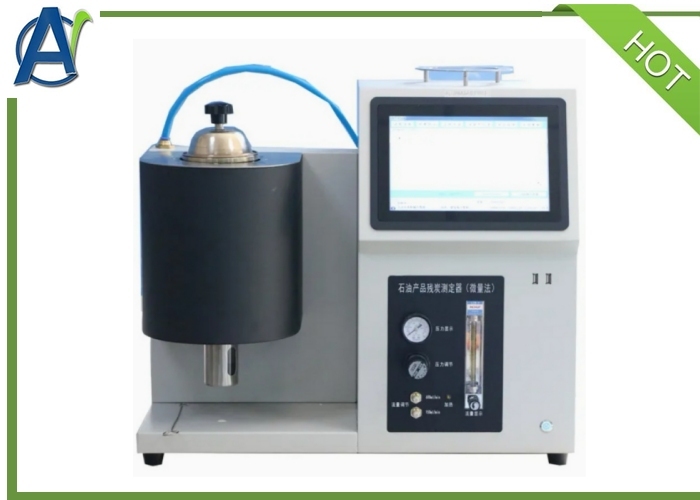

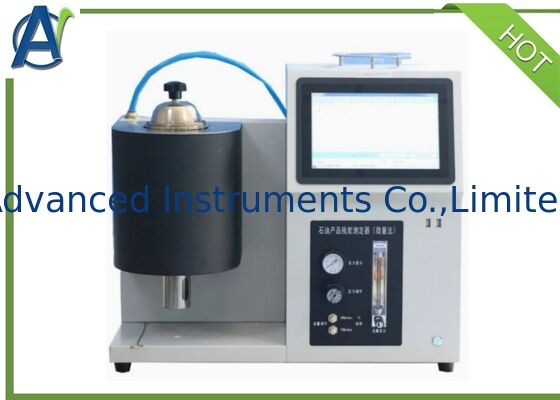

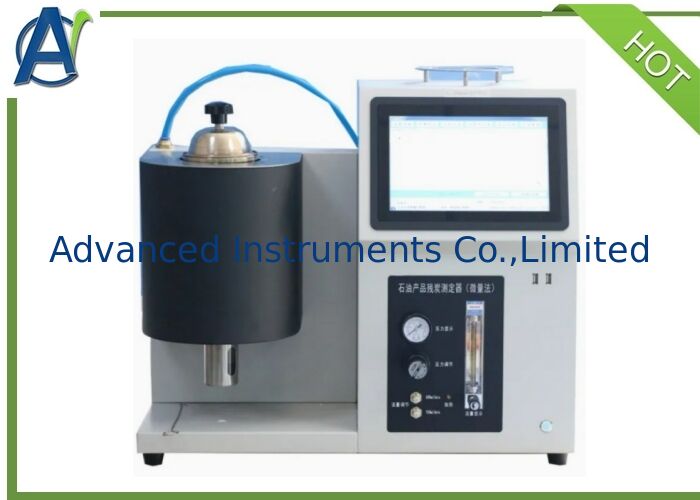

ASTM D4530 Automatic Petroleum Product Carbon Residue Tester (Micro Method) with Printer

ASTM D4530 Automatic Petroleum Product Carbon Residue Tester (Micro Method) with Printer
ASTM D4530 Automatic Petroleum Product Carbon Residue Tester (Micro Method) with Printer ASTM D4530 Automatic Petroleum Product Carbon Residue Tester (Micro Method) with Printer ASTM D4530 Automatic Petroleum Product Carbon Residue Tester (Micro Method) with Printer ASTM D4530 Automatic Petroleum Product Carbon Residue Tester (Micro Method) with Printer ASTM D4530 Automatic Petroleum Product Carbon Residue Tester (Micro Method) with Printer ASTM D4530 Automatic Petroleum Product Carbon Residue Tester (Micro Method) with Printer ASTM D4530 Automatic Petroleum Product Carbon Residue Tester (Micro Method) with Printer ASTM D4530 Automatic Petroleum Product Carbon Residue Tester (Micro Method) with Printer ASTM D4530 Automatic Petroleum Product Carbon Residue Tester (Micro Method) with Printer ASTM D4530 Automatic Petroleum Product Carbon Residue Tester (Micro Method) with Printer ASTM D4530 Automatic Petroleum Product Carbon Residue Tester (Micro Method) with Printer ASTM D4530 Automatic Petroleum Product Carbon Residue Tester (Micro Method) with Printer
Informação Básica
Lugar de origem: China
Marca: Advanced Instruments
Certificação: ISO 10370;ASTM D4530
Número do modelo: AIC-4530C
Quantidade de ordem mínima: 1 conjunto
Preço: US$6000-7000/set
Detalhes da embalagem: caixa de madeira compensada
Tempo de entrega: 15 dias
Termos de pagamento: T/T, L/C, D/P
Habilidade da fonte: 50 conjuntos por mês
Melhor preço contacto
Padrão de teste: ASTM D4530 Fonte de energia: AC220 V±10%, 50 Hz
Consumo de energia: ≤1400W Temperatura da câmara de coque: 500 ℃
Precisão do controle de temperatura: ± 2 ℃ Potência de aquecimento: 1200 W
Temperatura ambiente: 5℃~35℃
Destacar:

ASTM D4530

,

Automatic Micro Carbon Residue Tester

,

Determination of Carbon Residue (Micro Method)

General Introduction

This Micro Carbon Residue Tester is designed and made as per GB/T17144-1997(2004) Test Method for Carbon Residue of Petroleum Products-Micromethod. It is suitable to determine the the amount of carbon residue of petroleum products.
The measurement range of this instrument is 0.10%(m/m)~30.0%(m/m).The test result is equivalent to the result of determination by Conradson method(GB/T268) if the carbon residue value is higher than 0.10%(m/m).
The instrument can also be used to determine the petroleum products composed of distillate oils which carbon residue value is lower than 0.10%(m/m). But the specimen shall samplinged to 10%(V/V)distillation residue according to GB/T6536 firstly.



Product Advantages
1.This Micro Carbon Residue Test Equipment adopts a microcontroller system, combined with color LCD touch screen, desktop integrated structure, left focus box, right instrument control unit, reasonable design, safe and reliable.

2.The touch screen displays the temperature of the instrument's combustion chamber temperature, heating rate, running time, status and other status information.

3.The industrial computer control system can follow the pre-set program, each interface has operation prompts, automatically control the whole process of the test, and the operation and control are convenient.

4.In full accordance with the standard requirements, the flow rate of nitrogen is automatically adjusted, the heating rate is automatically controlled, the temperature is automatically controlled, the gas volume is easy to adjust, the heating rate is accurate, and the temperature control is stable.

5.Automatically collect test data, calculate the results, and save the data according to user requirements
.
6.Equipped with high-precision temperature control and temperature sensing system, the temperature control accuracy reaches ±2°C and the resolution is 0.1°C.

7.The micro carbon residue tester equips a electric balance to achieve the automation of sample weighing and data input.

ASTM D4530 Automatic Petroleum Product Carbon Residue Tester (Micro Method) with Printer 0


The Technical Specifications and Parameters



Power supply
AC (220 ±10%)V, 50 Hz
Total power consumption
≤1400W
Temperature of coke chamber
500℃
Temperature control accuracy
±2℃
Temperature display resolution
0.1ºC
Heating power 1200w
Ambient temperature 15°C~35°C
Relative humidity ≤85%
Dimension 500mm×280mm×550mm
N.W 18.5KG



ASTM D4530 Automatic Petroleum Product Carbon Residue Tester (Micro Method) with Printer 1



FAQ

1.What's the delivery time?
About 15days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
